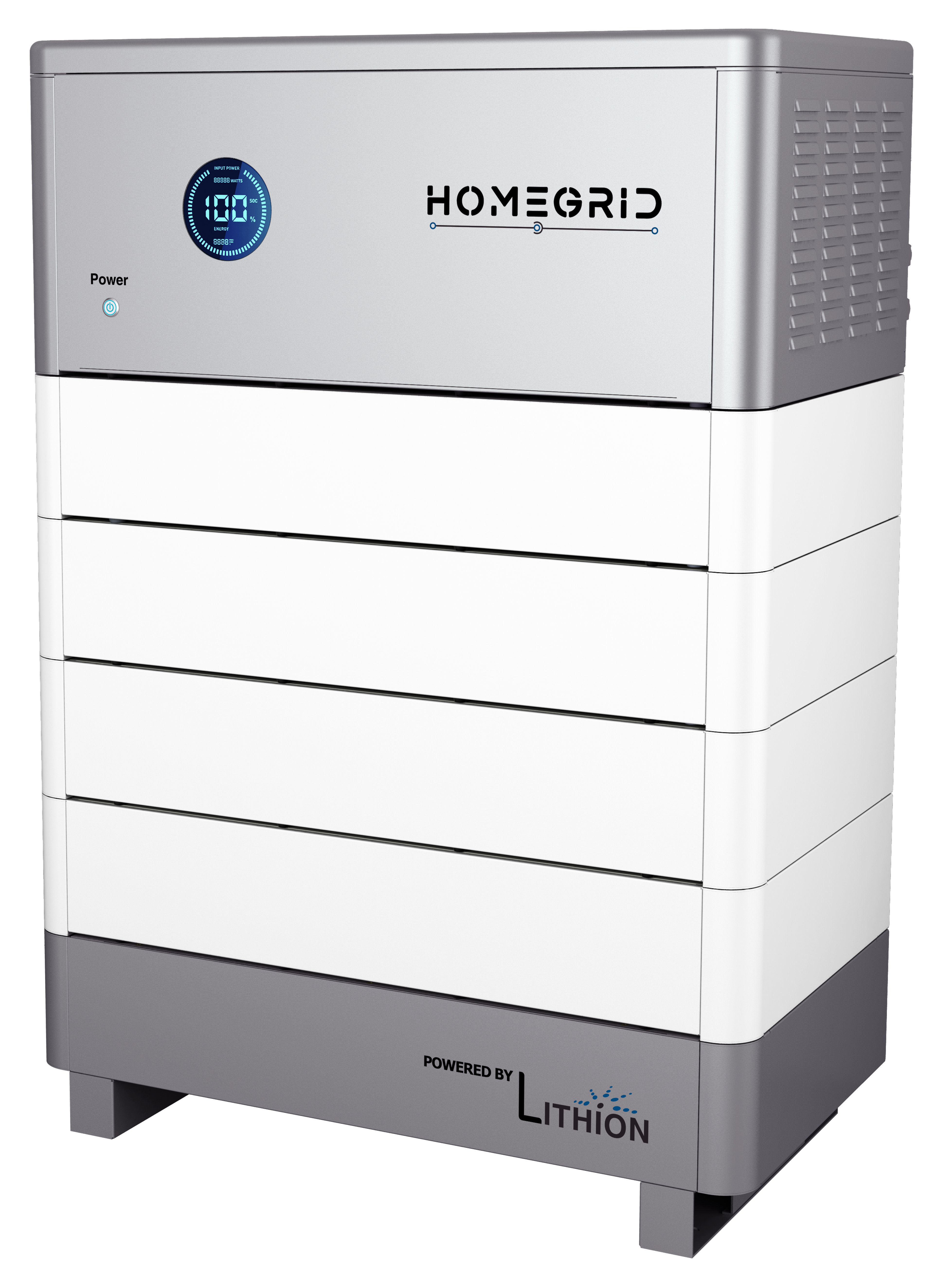

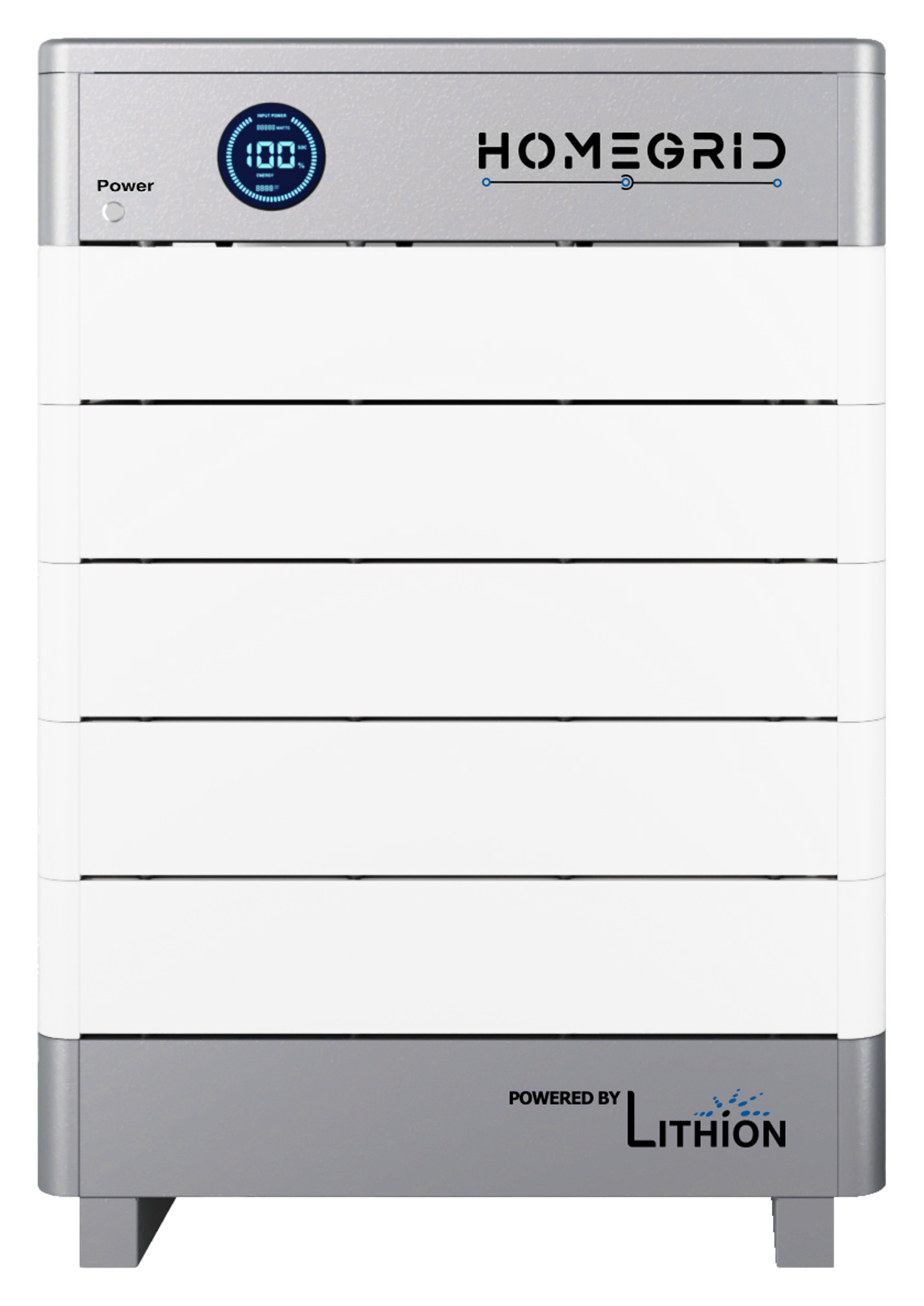

Stack'd Series
With the highest output and capacity range available, the Stack’d Series battery is the right solution for residential and small commercial storage projects. From small off-grid cabins, to peak rate TOU (time-of-use) offset, family homes in suburbia, and small commercial projects, the HomeGrid Stack’d Series battery is the proven best choice.
Output: up to 14.4 kW continuous
Surge: up to 24 kW (10 sec)
Capacity: up to 38.4 kWh per Stack (576 kWh total)
Install: <30 minutes
Heated modules and Outdoor Case available
High-Voltage BMS coming soon
accessories

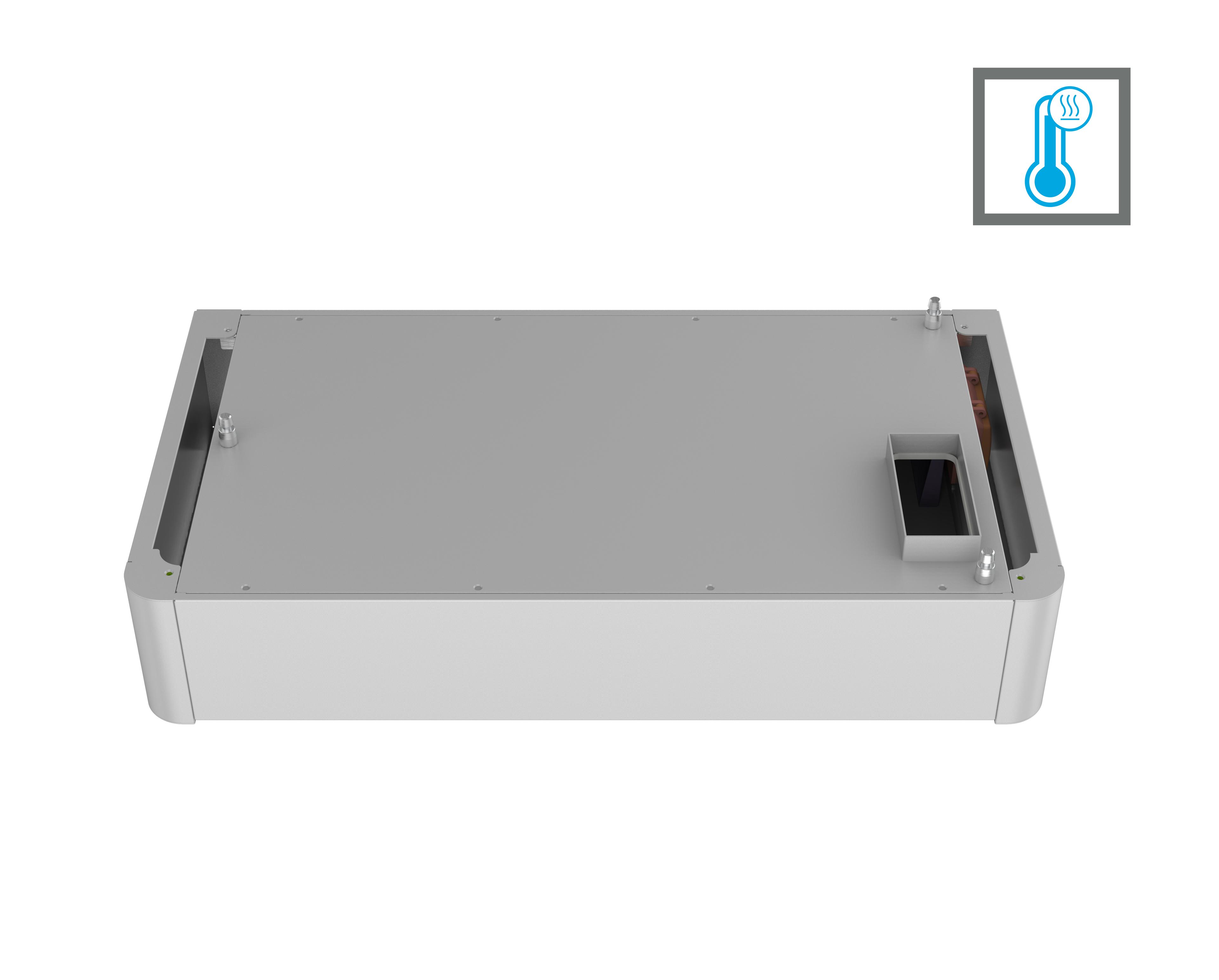

Heated Modules
For colder climates, HomeGrid offers the option of heated battery modules in the Stack’d Series system. These heated modules will automatically keep the batteries within operating temperatures to make sure that capacity is maintained, and the batteries’ function is optimized, even in the coldest of conditions.
HV BMS
The Stack’d Series High Voltage BMS allows the Stack’d Series battery to be paired with HV inverters and offers an adjustable output voltage within the range of 260-400v. Established communication with an inverter is required. This solution allows for the same advantages & specifications of our classic Stack’d Series battery, but with a much higher output voltage for residential/commercial applications. This product will work with the Sol-Ark 30K & 60K and will be ready for sale in Q1 2024.
Specifications
Outdoor Case
The Stack’d Series Outdoor Case is IP65/NEMA3R rated and is made from weatherable/UV-resistant ABS to better protect the Stack’d Series battery in direct weather. It features UV-resistant plexiglass to view the battery LCD, a water-proof vent on the back to help manage temperature, holes in the base for ground-mounting, and a hole for mounting a security padlock. This case currently fits a 2-4 module Stack. HomeGrid recommends that the case is not installed in direct sunlight.
Specifications

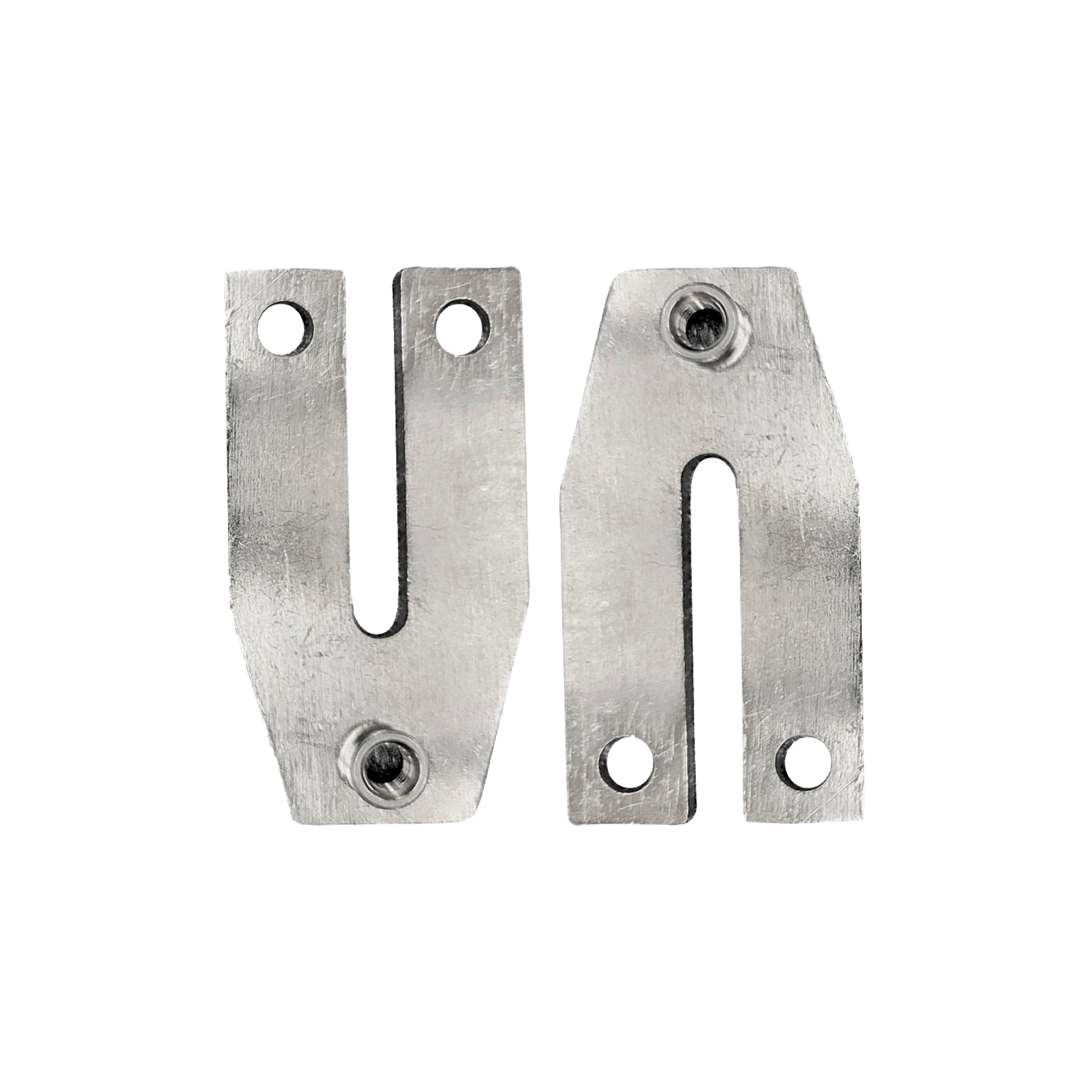

Solark 15k Busbar Pair

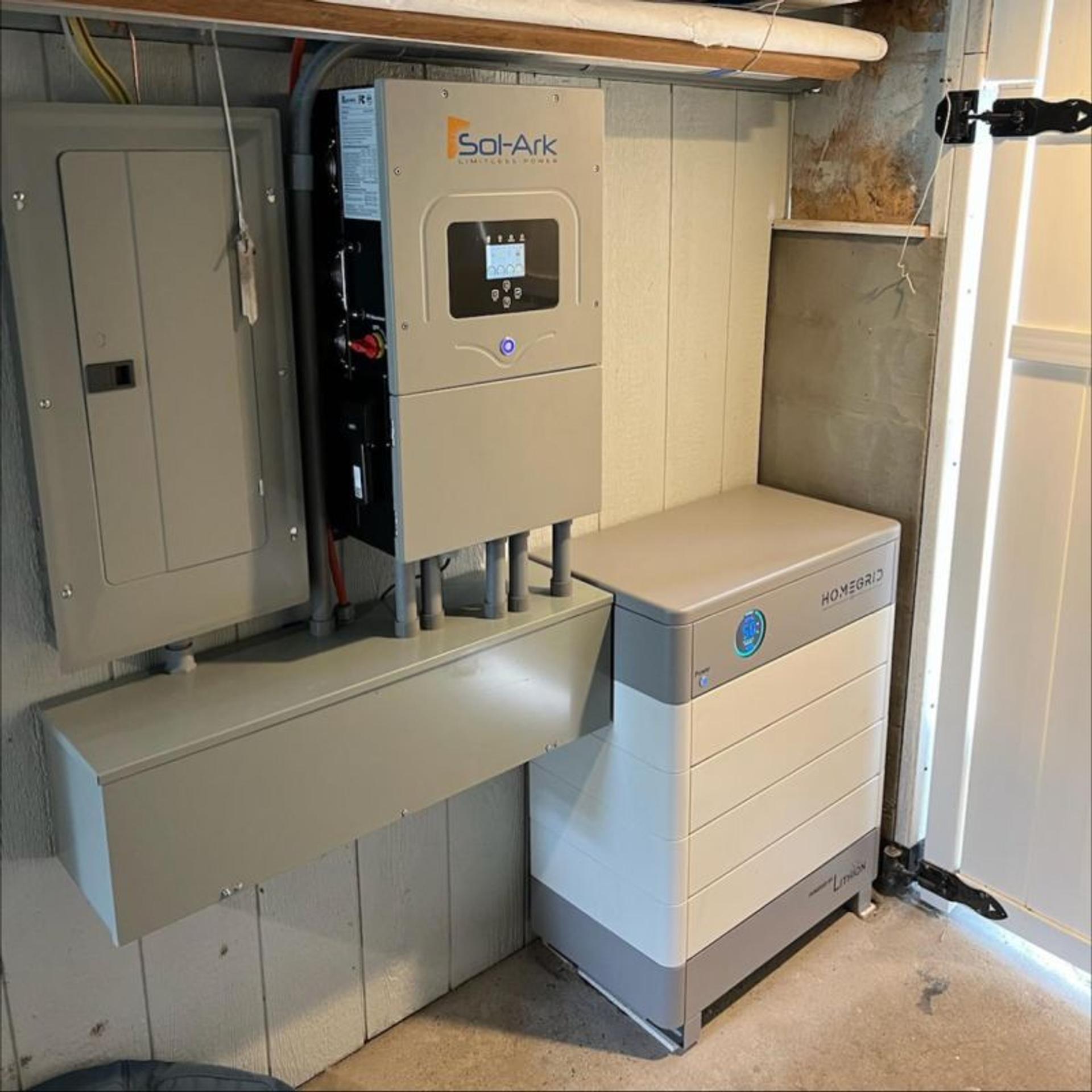

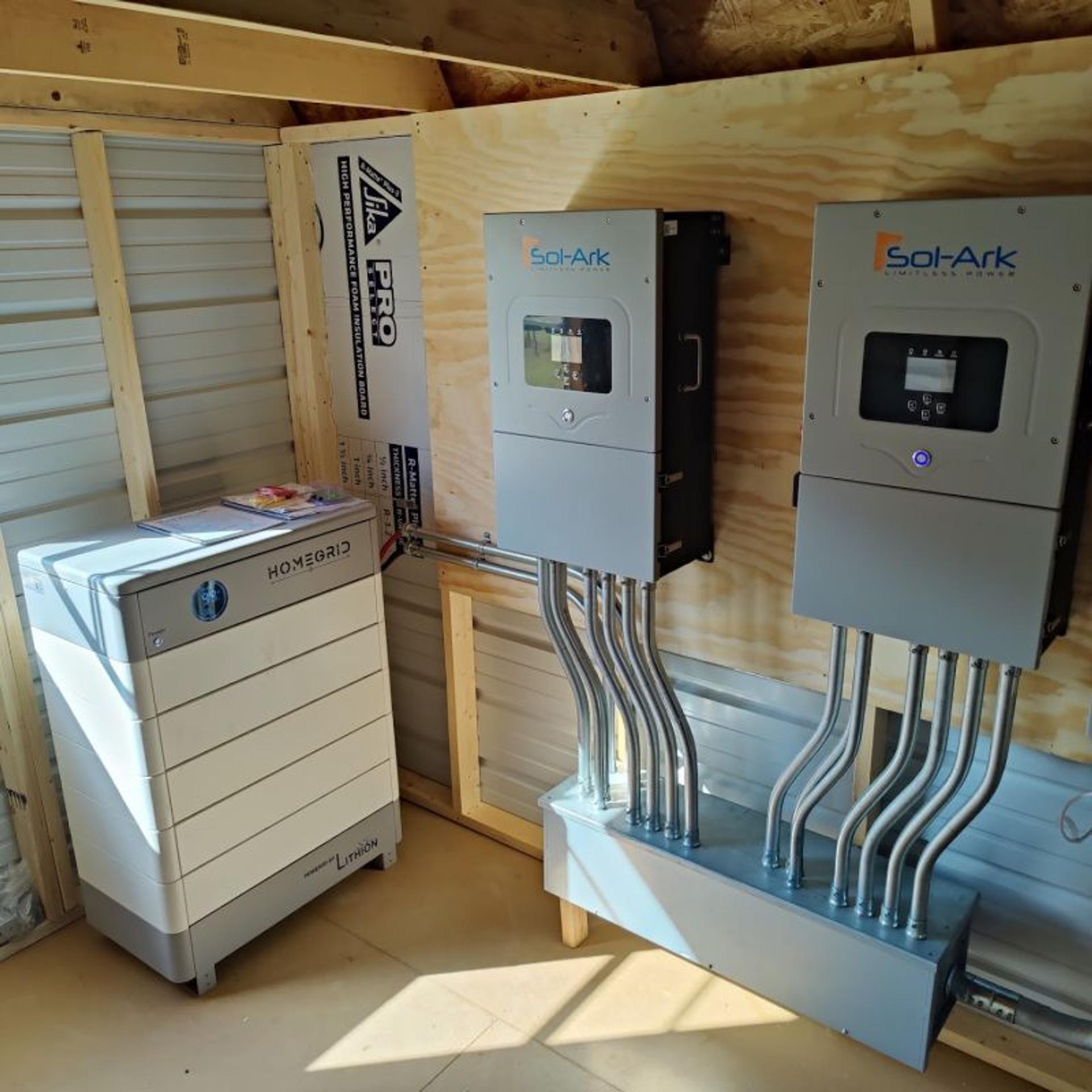

When installing a single Stack’d Series battery with a Sol-Ark 15K, HomeGrid highly recommend using this busbar pair. This is because the Stack’d Series battery is the only battery on the market that outputs enough power from a single unit for the Sol-Ark 15K. This busbar pair can be placed on the 15K battery landings to easily connect the battery cables (single + and single -) and maximize the system output.
features
Chemistry: Many manufacturers choose to use status quo equipment. By using LFP (lithium iron phosphate) we’ve picked the right chemistry for the job. LFP is safer and lasts longer than other battery chemistries in a stationary storage market.

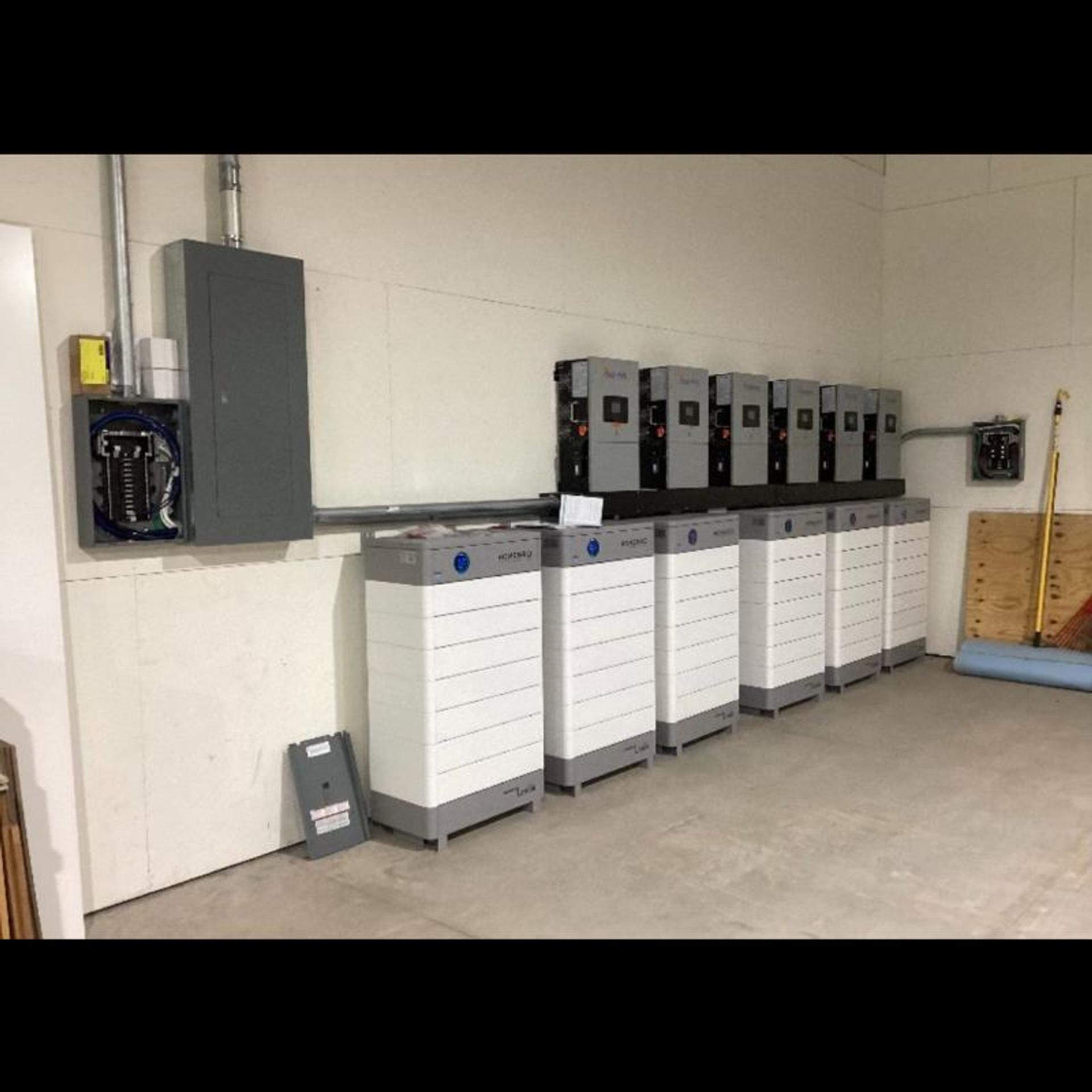

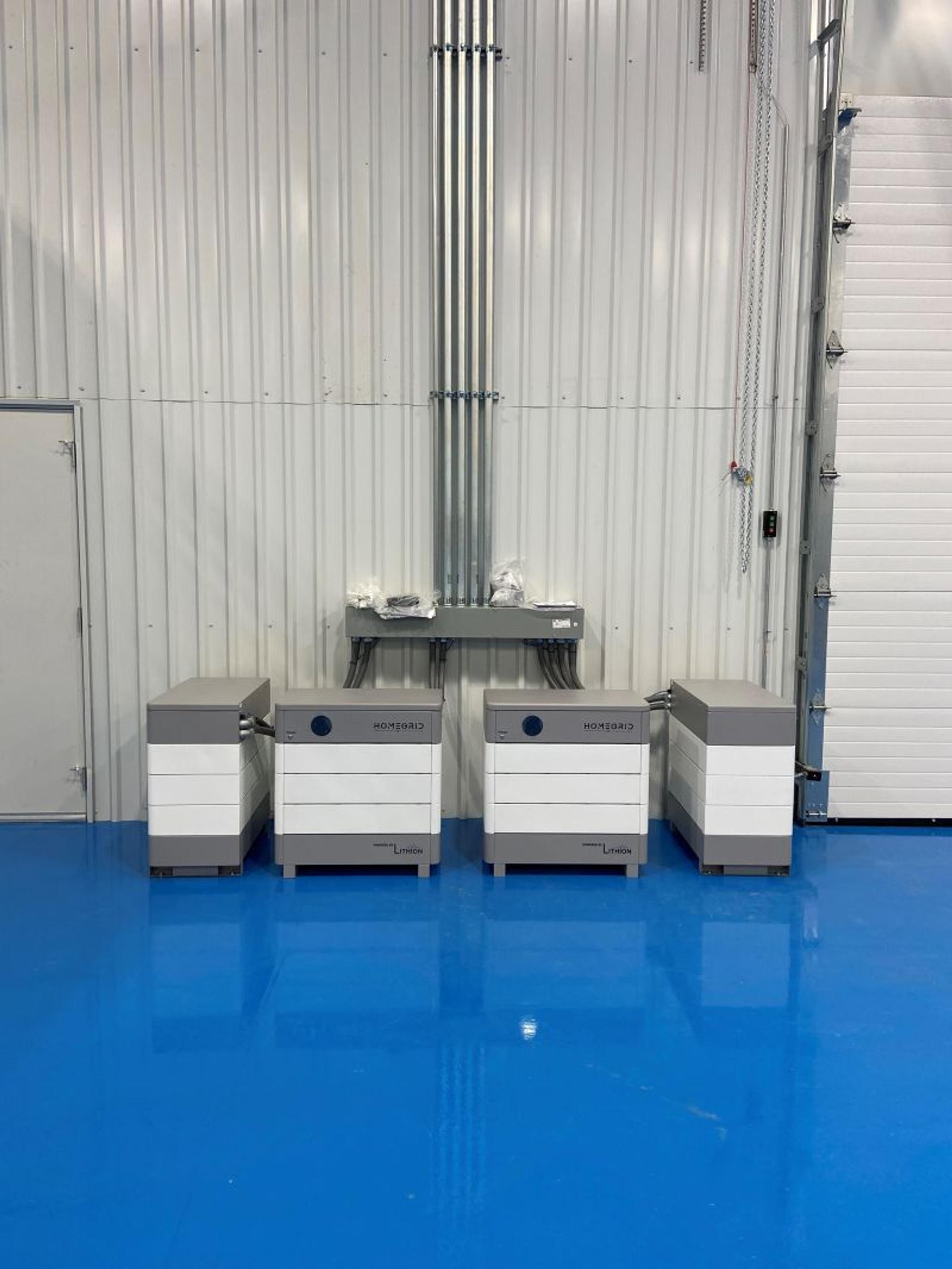

Specifications: With one unit having nearly 15 kW of continuous power and a 24 kW surge, this system can handle the needs of an entire home or business… air conditioning and water pumps included. We can pair up to 15 Stacks in parallel for an unprecedented amount of power and capacity.

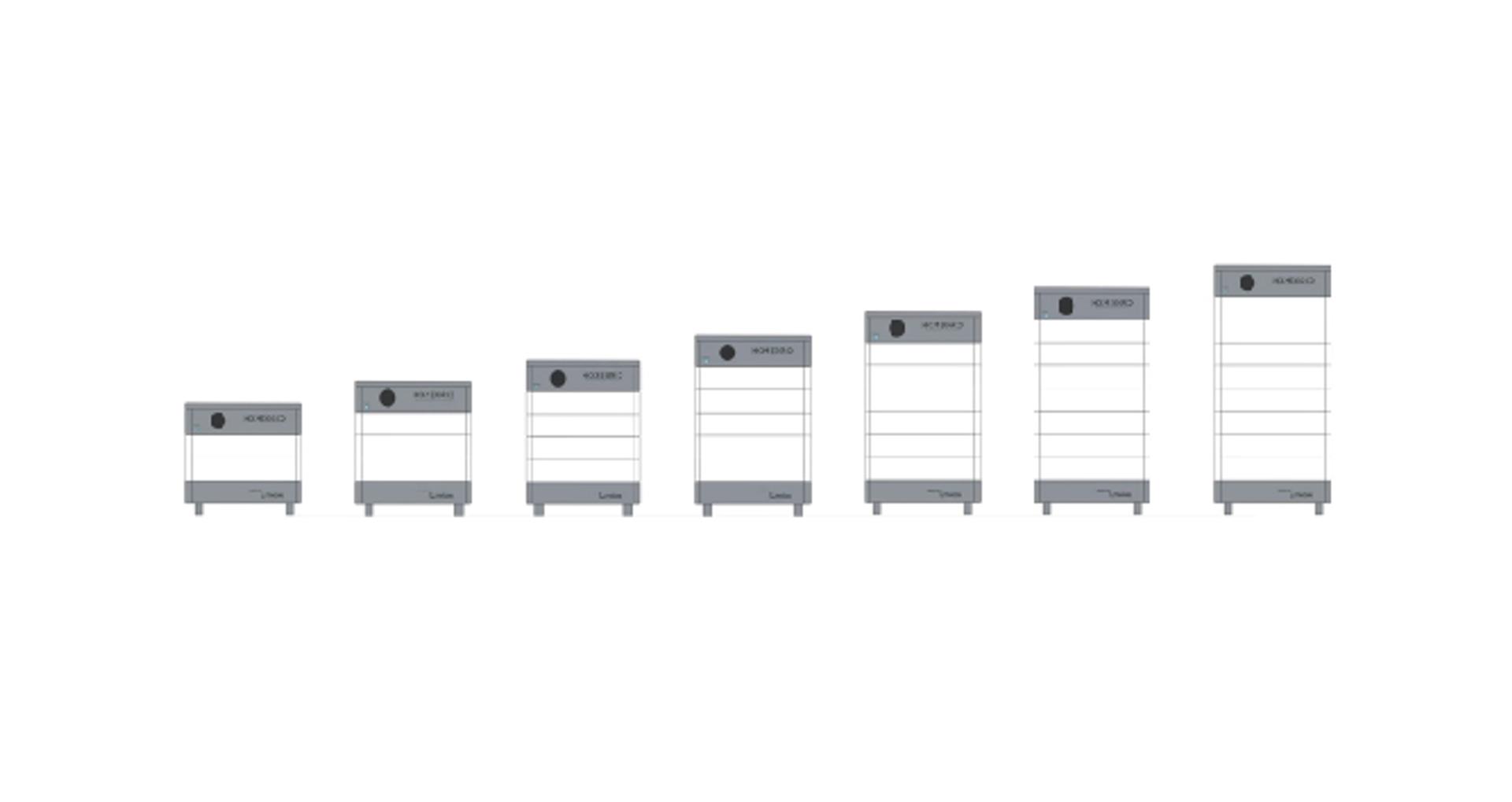

Modularity: Each white battery module is 4.8 kWh and each Stack can support 2-8 modules. This Lego-like form factor means a <30 min installation, and it’s the easiest battery to upgrade in the future. No wiring between modules, and no conduit/wiring needed when it comes time to upgrade.
